Why Automatic Lubrication
Automatic lubrication and single-point lubricators are one of the easiest places to start when improving a plant's reliability programme. Filled with the correct lubricant, a single-point automatic lubricator pays for itself through reduced maintenance and labour costs while increasing operational safety.
- Reduced maintenance costs
- Increased labour efficiency and cost savings
- Increased safety for maintenance personnel
- Reduced equipment downtime
- Longer equipment service life
- Guaranteed optimum, consistent lubrication
- Increased reliability by eliminating human error
- Improved hygienic design and food safety

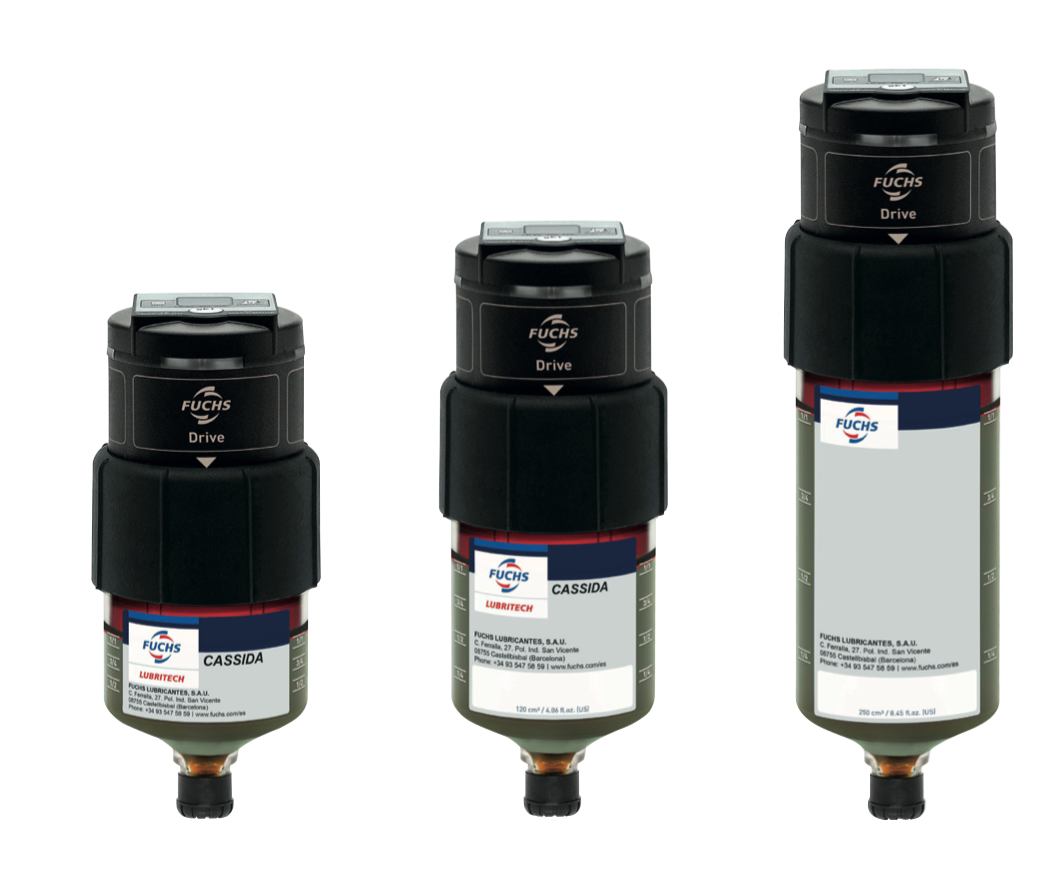

CASSIDA STAR VARIO
CASSIDA STAR VARIO operates fully automatically with high-precision discharge, regardless of temperature or back pressure. The system consists of an electromechanical drive, a lubricant cartridge (LC) with a capacity of 60, 120, or 250 cm³, and a battery pack. Discharge time and LC size are set using the push-button LCD display, and a green/red LED shows operating status, visible even from a distance.
| Specification | Detail |
|---|---|
| Drive | Reusable electromechanical drive with STAR VARIO battery pack |
| Discharge Time | 1, 2, 3… 12 months |
| Lubricant Capacity | 60, 120, or 250 cm³ |
| Application Temperature | -20°C to +60°C |
| Operating Pressure | 6 bar |
| Protection Class | IP 65 |
| Lubricant Compatibility | Grease up to NLGI 2, or oil |
Product features: settings can be changed at any time and switched off during extended shutdowns; the 6-bar operating pressure enables remote installation up to 5 m away from the lubrication point, increasing safety and allowing cartridge changes while machines keep running; a manual purge button clears blockages on demand.
STAR VARIO Accessories & Cartridges
- STAR VARIO DRIVE — geared motor, 5-year service life
- STAR SUPPORT FLANGE — first-installation support
- STAR VARIO BATTERY — replaced with each LC change
- CASSIDA STAR LC 60 / LC 120 / LC 250 — replacement cartridges

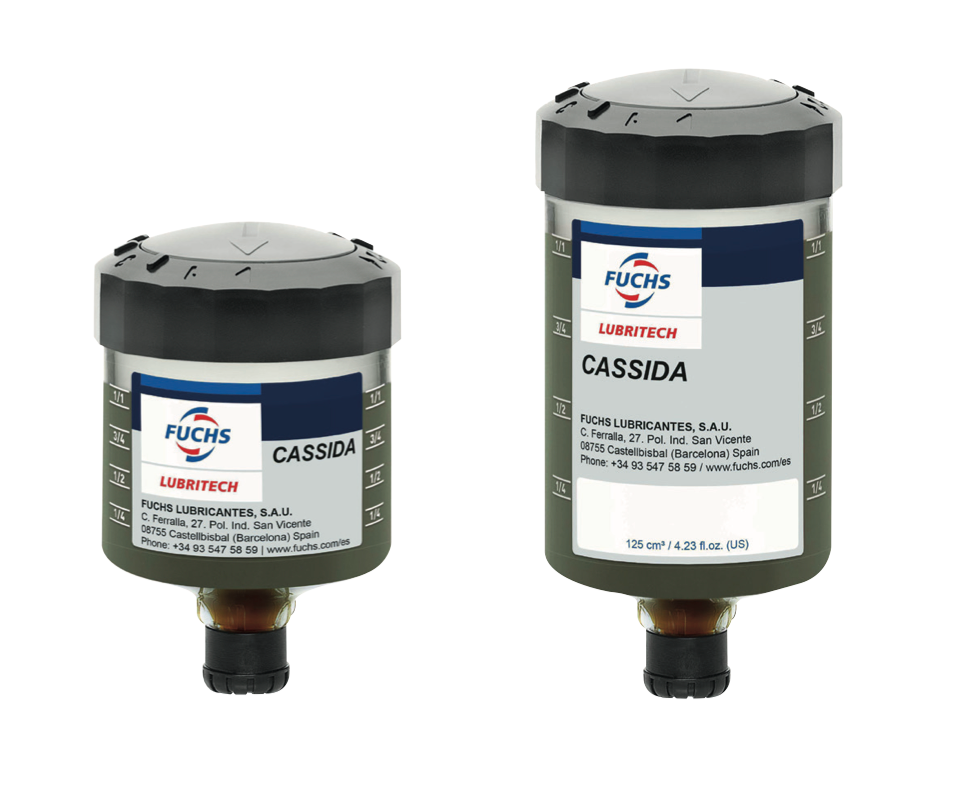

CASSIDA FLEX
CASSIDA FLEX is a compact, ready-to-use lubrication system supplied as a complete unit, for use across a wide temperature range of -20°C to +60°C. Discharge pressure is generated by an electronically controlled chemical reaction, continuously supplying fresh lubricant to the lubrication point over a freely selectable discharge time of 1 to 12 months. Available in 60 cm³ and 125 cm³ sizes.
| Specification | Detail |
|---|---|
| Operation | Electrochemical reaction, gas production |
| Discharge Time (at +20°C) | 1, 2, 3… 12 months |
| Lubricant Capacity | 60 cm³ or 125 cm³ |
| Application Temperature | -20°C to +60°C |
| Operating Pressure | Max. 5 bar |
| Protection Class | IP 68 |
| Lubricant Compatibility | Grease up to NLGI 2, or oil |
Product features: supplied fully assembled and ready for immediate use, with an all-in-one rotary timer set by dial from 1–12 months; operates reliably outdoors year-round; EX certified and FM approved (IP68) for safe, constant lubrication in explosion-hazard, high-humidity, or dusty environments.
CASSIDA FLEX Variants
- CASSIDA FLEX 60 — 60 cm³ automatic lubrication system
- CASSIDA FLEX 125 — 125 cm³ automatic lubrication system
Remote Installation Accessory Kit
Although preference should be given to installing automatic lubricators directly at the lubrication point, remote installation is often necessary to reduce lubricant pressure at points subject to high temperatures (>60°C), vibration, impact, or accessibility risk. To maintain correct operating pressure, STAR VARIO should be installed no more than 5 m away, and FLEX no more than 2 m away, from the lubrication point.
- STAR G1/4 mounting bracket (stainless steel)
- 65 mm beam clamp (stainless steel)
- Straight G1/4" connector, 8 mm OD / 6 mm ID tubing (nickel-plated brass)
- 8 mm OD tubing, -40°C to +80°C (PA), 3 m
- G1/4 male x G1/4 female 90° elbow (brass)
- Oil retaining valve or reducer fittings (brass), depending on kit
Available as separate Oil Lubricator and Grease Lubricator installation kits, each supplied as a boxed set of accessories and replacement parts compatible with CASSIDA STAR LC or CASSIDA FLEX units.
